insight-400 laser ranging sensor
The Onick Insight-400 laser distance sensor is a versatile, industrial-grade pulsed laser distance sensor. It boasts high accuracy and stability, achieving ±10cm accuracy within 150 meters (against a white wall with a large reflective surface) and ±1m accuracy within 400 meters. The Insight-400 is a pulsed laser distance sensor that utilizes Time-of-Flight (TOP) technology for fast and accurate measurement. It utilizes a 905nm laser for stable performance and a wide measurement range, and is certified for Class 1 laser safety for safe operation. Compact and lightweight, the Onick Insight-400 sensor is powerful, durable, and IP65 rated.

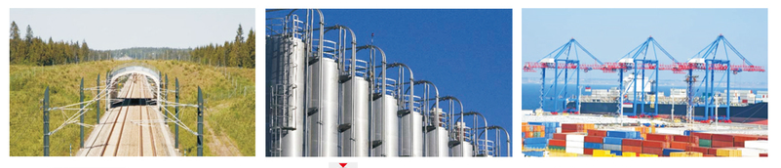

With functions such as distance measurement, speed measurement, RS232/RS485 output, analog output and switch output, it is widely used in many fields such as industrial liquid level, large-scale industrial assembly positioning, ship safety verification, container positioning, vehicle safety speed measurement, overhead cable measurement, etc. It is an ideal instrument for industrial automation and intelligent management.
2. Product Features:
1. The measuring range can reach 400 meters, with wide measuring range, fast response speed, small size and easy installation and debugging;
2. Three output modes, switch output and analog output can be programmed separately;
3. Flexible expansion of connection cables, using industrial aviation plug wires;
4. PC terminal operation, easy to monitor, first-level laser eye safety level, safe to use;
3. Product parameters:
Maximum range: 400m (white target), 250m (gray target)
Minimum range: 1.0m
Accuracy: ±10cm
Measurement reference side: front reference/back reference
Pulse repetition rate: 10KHZ
Data output rate: 1-1KHZ
Analog output: Programmable analog output
Switch output: programmable analog output
Laser Class: Class 1
Laser tube luminous surface diameter: 200um*10um
Resolution: 1cm
300M spot diameter: 1.1m
Maximum pulse energy: 75W
Measuring wavelength: 905nm (infrared)
Divergence angle: 3 millirads
Standard adapter cable: industrial aviation plug cable
Input voltage: 12-24VDC
Current: 160mA (@12VDC, 10KHZ, close distance)
Serial interface: TTL or RS232 or RS485
Baud rate: 4800/9600/38400/115200 (adjustable)
Alarm output voltage: 3.3V/12V optional
Electromagnetic compatibility: Certified according to IEC 60825-1:2007
Protection level: IP65
Operating temperature range: -10℃~60℃
Storage temperature range: -40℃~70℃
Size: 105.90*72.8*43.8cm
Shell material: aluminum alloy
Weight: 480g
